Installation Instruction Of Wall Mounted Concealed Shower System
Publish Time: Author: Site Editor Visit: 129

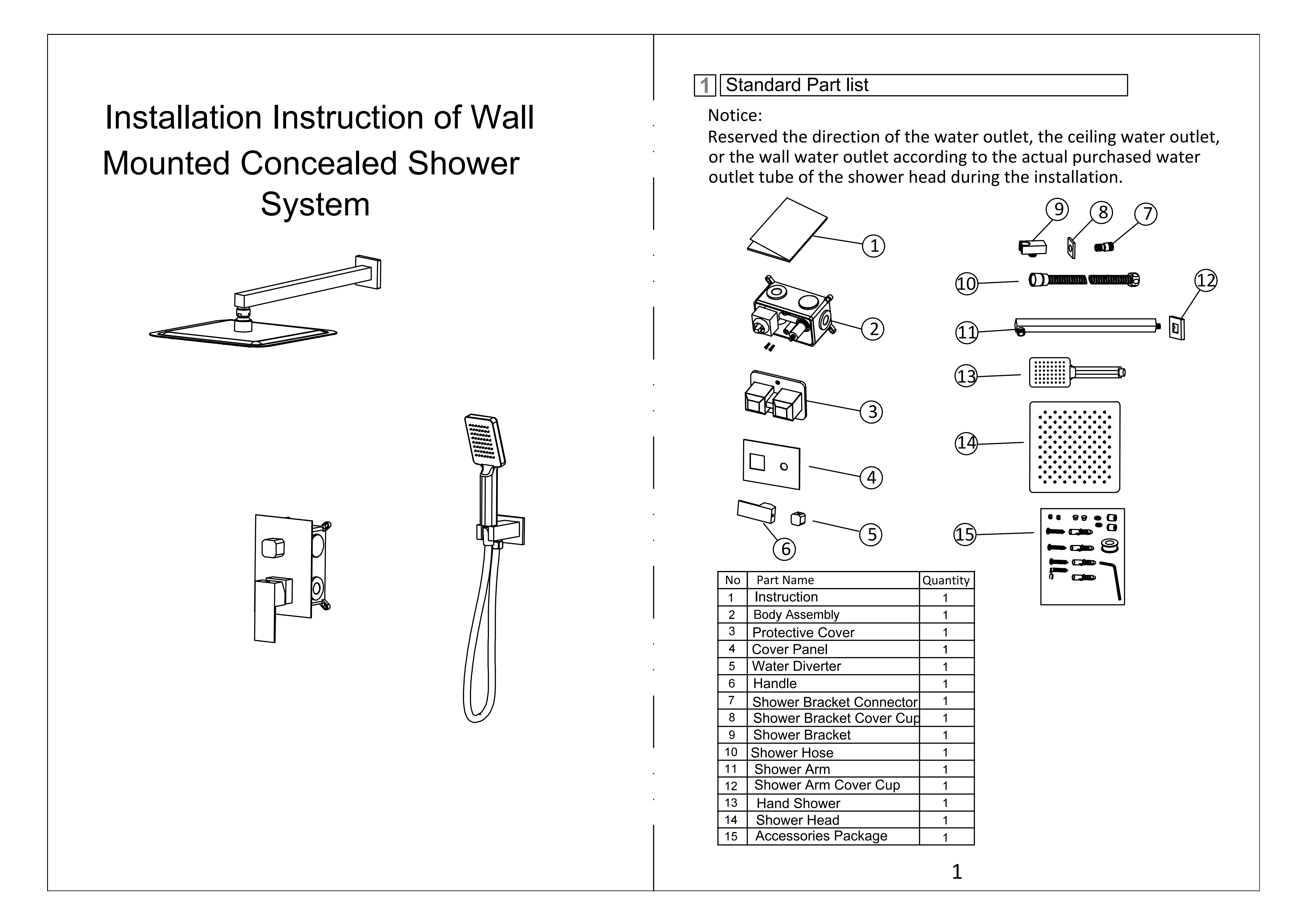

Standard Part list
Notice: Reserved the direction of the water outlet, the ceiling water outlet, or the wall water outlet according to the actual purchased water outlet tube of the shower head during the installation.
| No | Part Name | Quantity | Instruction |
|---|---|---|---|
| 1 | Instruction | 1 | - |
| 2 | Body Assembly | 1 | - |
| 3 | Protective Cover | 1 | - |
| 4 | Cover Panel | 1 | - |
| 5 | Water Diverter | 1 | - |
| 6 | Handle | 1 | - |
| 7 | Shower Bracket Connector | 1 | - |
| 8 | Shower Bracket Cover Cup | 1 | - |
| 9 | Shower Bracket | 1 | - |
| 10 | Shower Hose | 1 | - |
| 11 | Shower Arm | 1 | - |
| 12 | Shower Arm Cover Cup | 1 | - |
| 13 | Hand Shower | 1 | - |
| 14 | Shower Head | 1 | - |
| 15 | Accessories Package | 1 | - |

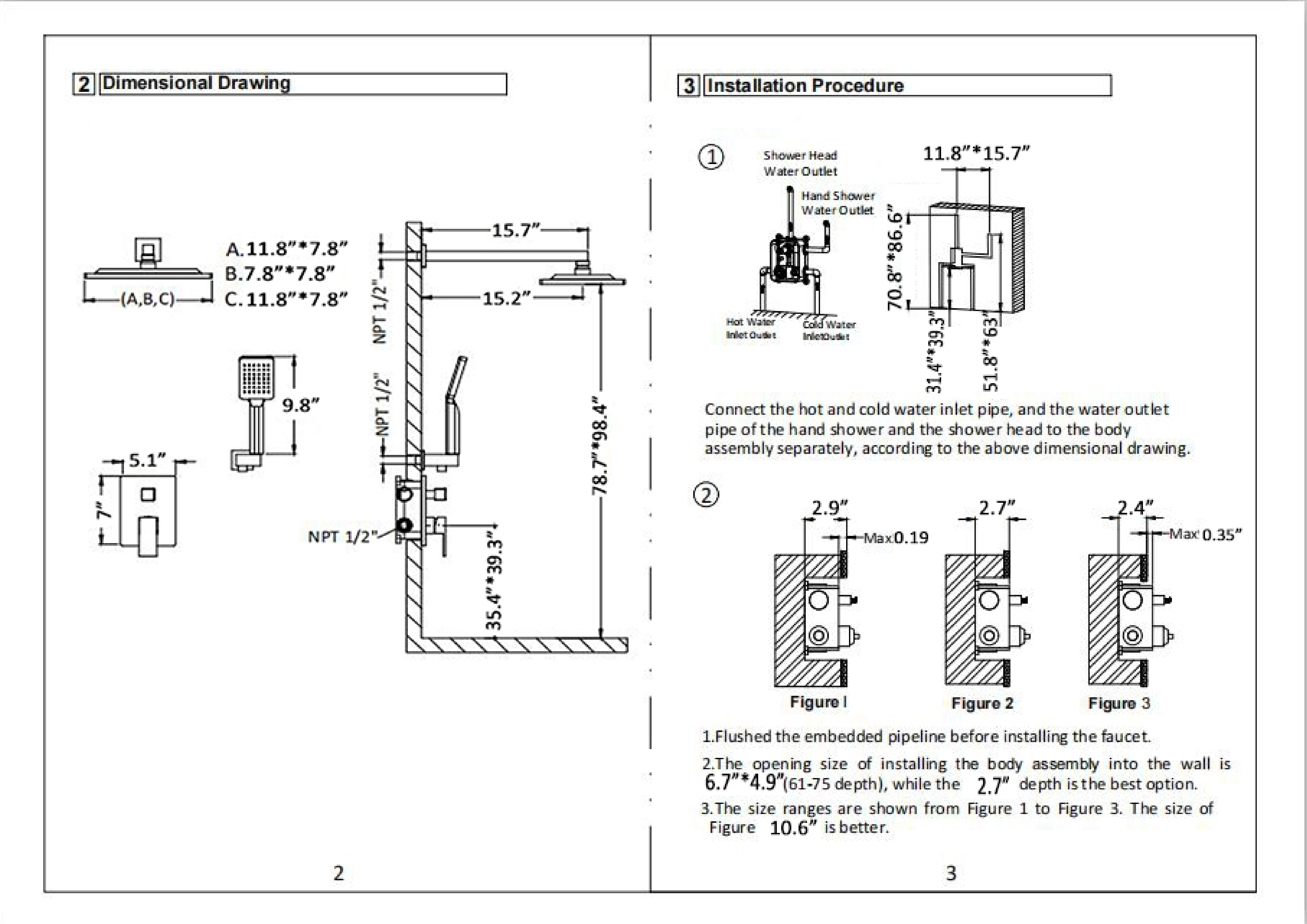

Dimensional Drawing
Installation Procedure
- Flushed the embedded pipeline before installing the faucet.
- The opening size of installing the body assembly into the wall is 6.7"* 4.9"(61-75 depth), while the 2.7" depth is the best option.
- The size ranges are shown from Figure 1 to Figure 3. The size of Figure 10.6" is better.

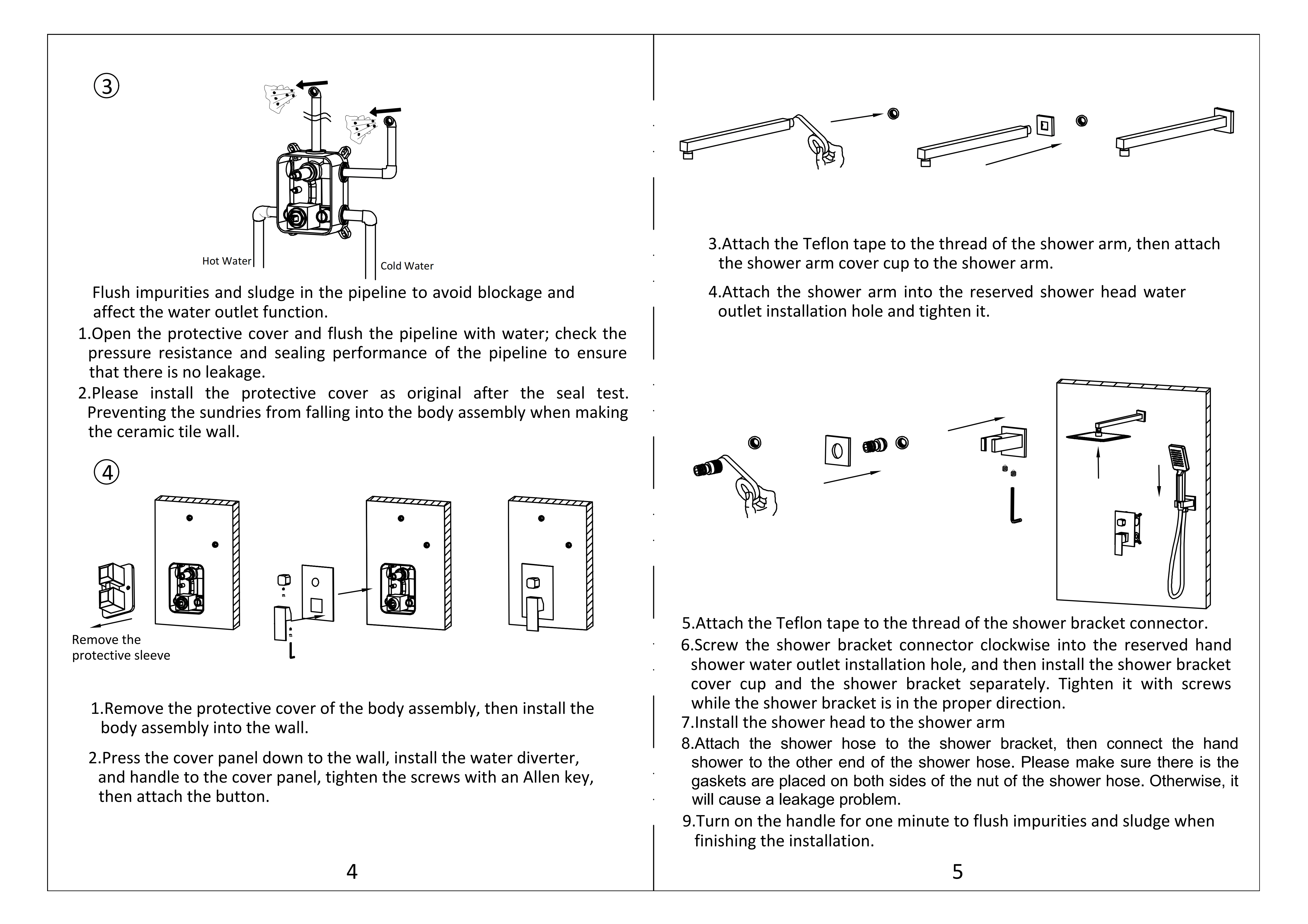

- Flush impurities and sludge in the pipeline to avoid blockage and affect the water outlet function:
- Open the protective cover and flush the pipeline with water; check the pressure resistance and sealing performance of the pipeline to ensure that there is no leakage.
- Please install the protective cover as original after the seal test. Preventing the sundries from falling into the body assembly when making the ceramic tile wall.
- Remove the protective sleeve:
- Remove the protective cover of the body assembly, then install the body assembly into the wall.
- Press the cover panel down to the wall, install the water diverter, and handle to the cover panel, tighten the screws with an Allen key, then attach the button.
- Attach the Teflon tape to the thread of the shower arm, then attach the shower arm cover cup to the shower arm.
- Attach the shower arm into the reserved shower head water outlet installation hole and tighten it.
- Attach the Teflon tape to the thread of the shower bracket connector.
- Screw the shower bracket connector clockwise into the reserved hand shower water outlet installation hole, and then install the shower bracket cover cup and the shower bracket separately. Tighten it with screws while the shower bracket is in the proper direction.
- Install the shower head to the shower arm.
- Attach the shower hose to the shower bracket, then connect the hand shower to the other end of the shower hose. Please make sure there is the gaskets are placed on both sides of the nut of the shower hose. Otherwise, it will cause a leakage problem.
- Turn on the handle for one minute to flush impurities and sludge when finishing the installation.

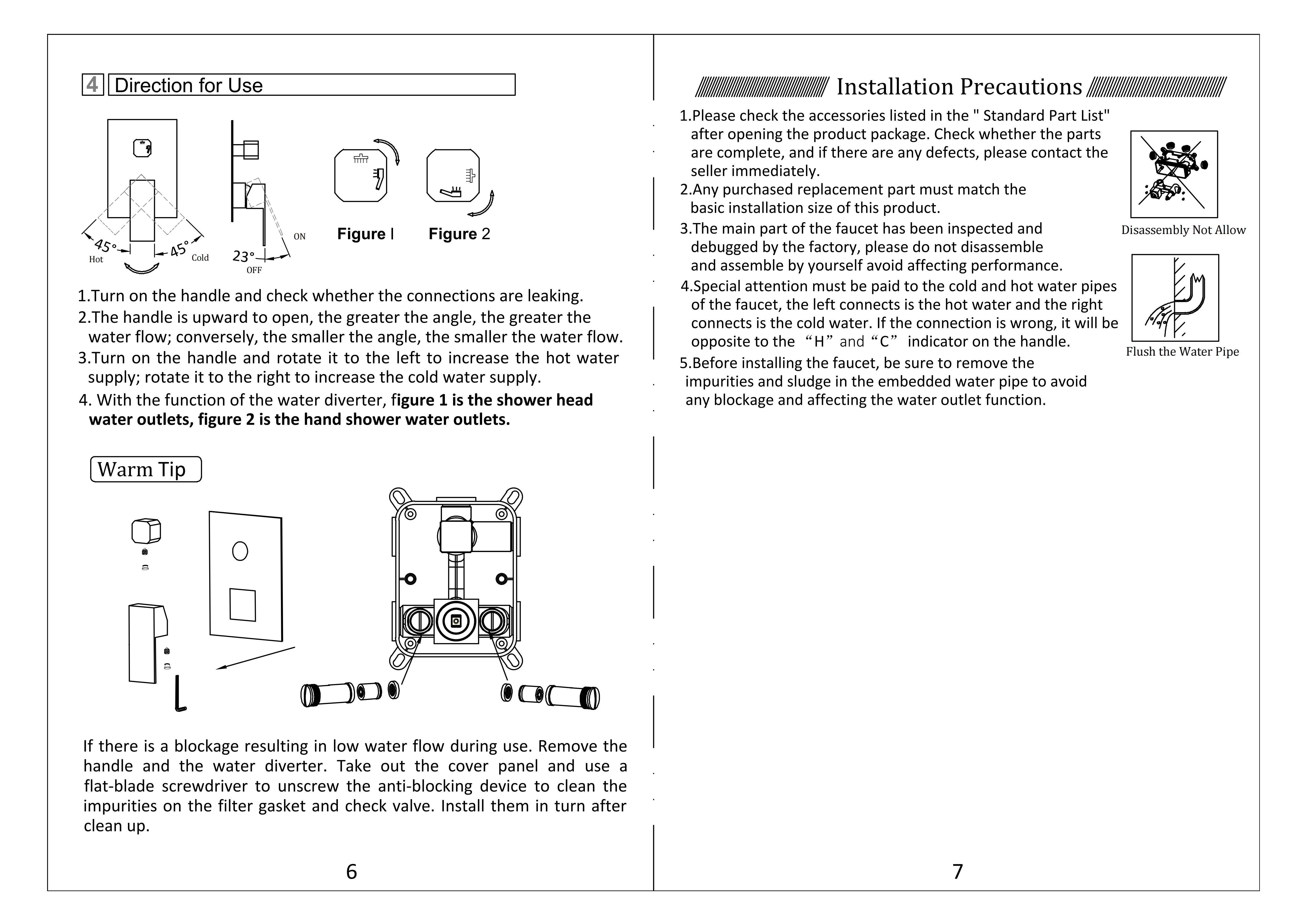

Direction for Use
- Turn on the handle and check whether the connections are leaking.
- The handle is upward to open, the greater the angle, the greater the water flow; conversely, the smaller the angle, the smaller the water flow.
- Turn on the handle and rotate it to the left to increase the hot water supply; rotate it to the right to increase the cold water supply.
- With the function of the water diverter, figure 1 is the shower head water outlets, figure 2 is the hand shower water outlets.
Warm Tip
If there is a blockage resulting in low water flow during use. Remove the handle and the water diverter. Take out the cover panel and use a flat-blade screwdriver to unscrew the anti-blocking device to clean the impurities on the filter gasket and check valve. Install them in turn after clean up.Installation Precautions
- Please check the accessories listed in the "Standard Part List" after opening the product package. Check whether the parts are complete, and if there are any defects, please contact the seller immediately.
- Any purchased replacement part must match the basic installation size of this product.
- The main part of the faucet has been inspected and debugged by the factory, please do not disassemble and assemble by yourself avoid affecting performance.
- Special attention must be paid to the cold and hot water pipes of the faucet, the left connects is the hot water and the right connects is the cold water. If the connection is wrong, it will be opposite to the “H”and“C” indicator on the handle.
- Before installing the faucet, be sure to remove the impurities and sludge in the embedded water pipe to avoid any blockage and affecting the water outlet function.
Disassembly Not Allow
Flush the Water Pipe
Flush the Water Pipe
