Wall Mounted Basin Faucet Installation Manual

Publish Time: Author: Site Editor Visit: 72

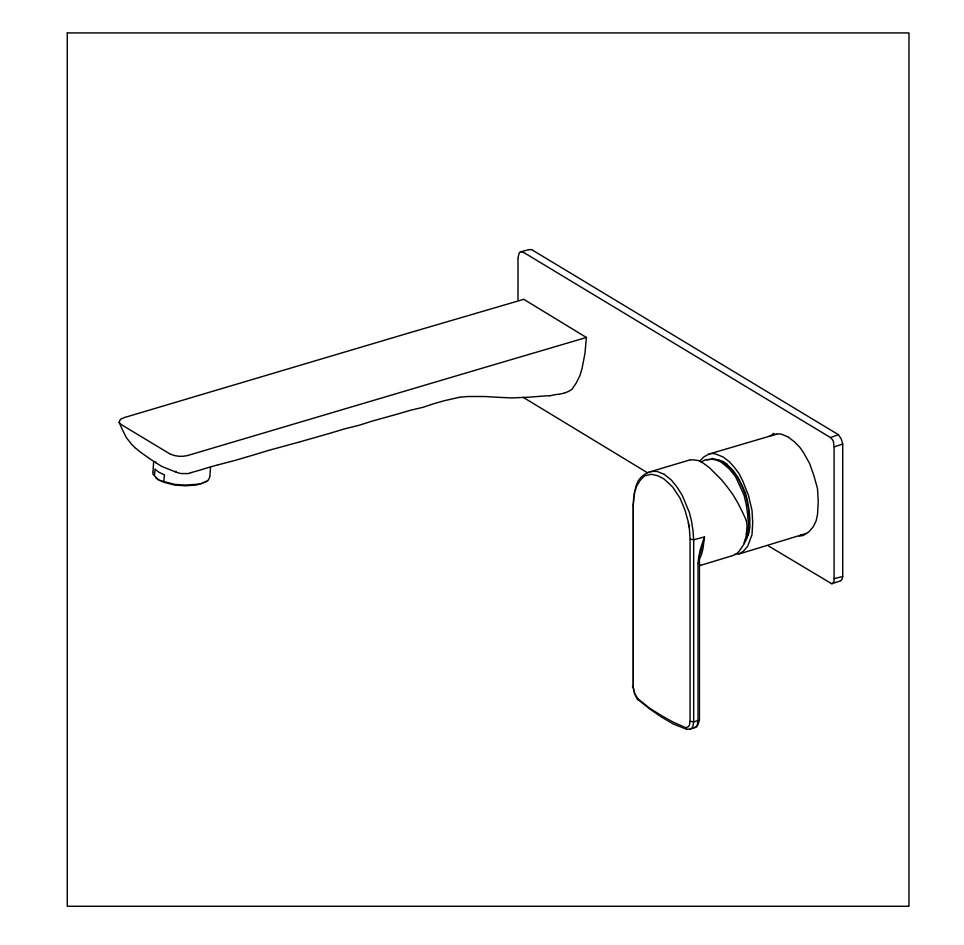

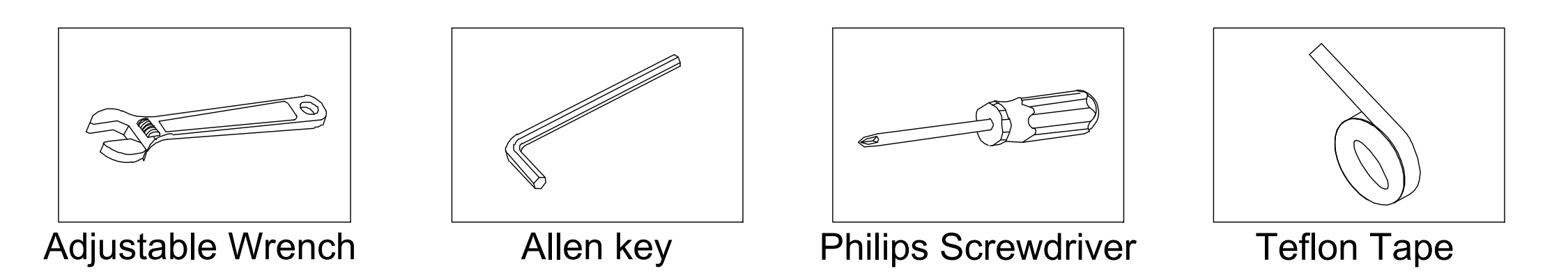

Tools You Will Need

Wall Mounted Basin Faucet Installation Manual

  • Adjustable Wrench
  • Allen Key
  • Philips Screwdriver
  • Teflon Tape

Before the Installation

  1. Check the package and confirm all parts are included. If any part is missing or damaged, please contact us.
  2. Do not disassemble the main body, as it has been installed & commissioned correctly & precisely before leaving the factory.
  3. Shut off the main water supply prior to beginning installation.
  4. Do flush the water supply lines to remove any dirt and debris before installation (IMPORTANT).
  5. Make sure to connect the hot/cold inlet pipe correctly. If standing in front, connect hot water pipe to the left and cold water pipe to the right.
  6. After the installation, check for leaks and make sure every joint is safely sealed.

Installation Steps

Step 1: Prepare the Threads

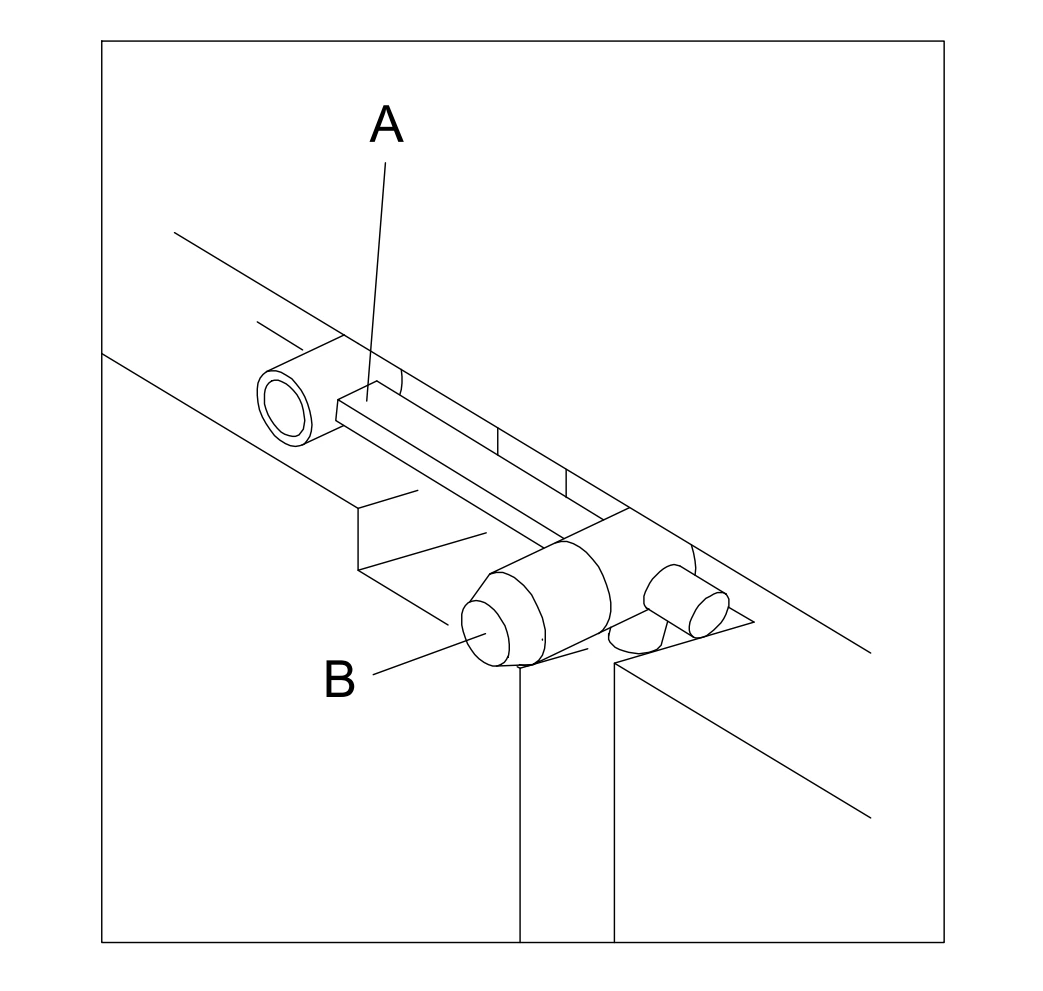

Use Teflon tape on pipe threads, connected to the main body (A) cold and hot as required inlet pipe and outlet pipe, checking the leakage before fixing the main body in the embedded hole (keep the horizontal and vertical). And assembling the protection plastic cover (B).

Wall Mounted Basin Faucet Installation Manual

Wall Mounted Basin Faucet Installation Manual

Step 2: Assemble the Handle

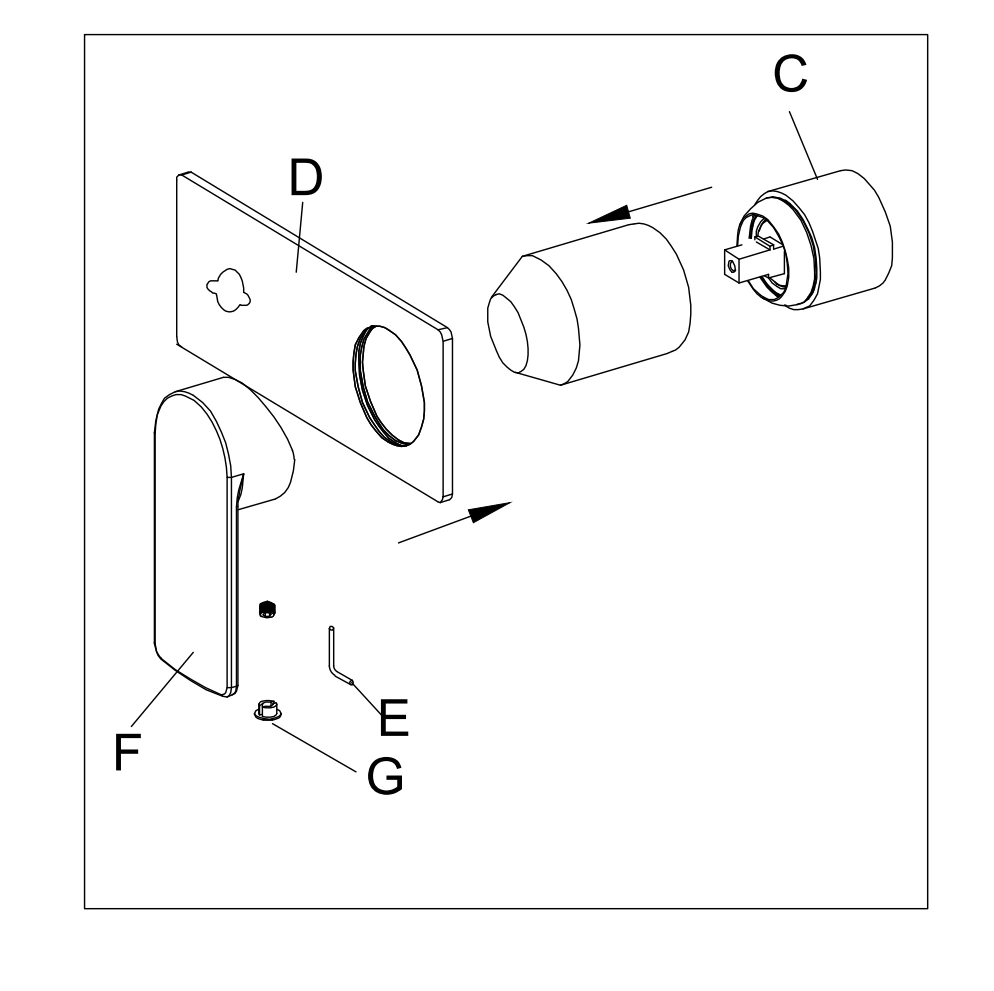

Remove the plastic cover (D) and then put the base through the cartridge cover (C), use Allen key (E) and the hexagon socket screw to assemble the handle (F) to the body, and then put on the decorative button (G).

Wall Mounted Basin Faucet Installation Manual

Step 3: Connect the Water Pipe

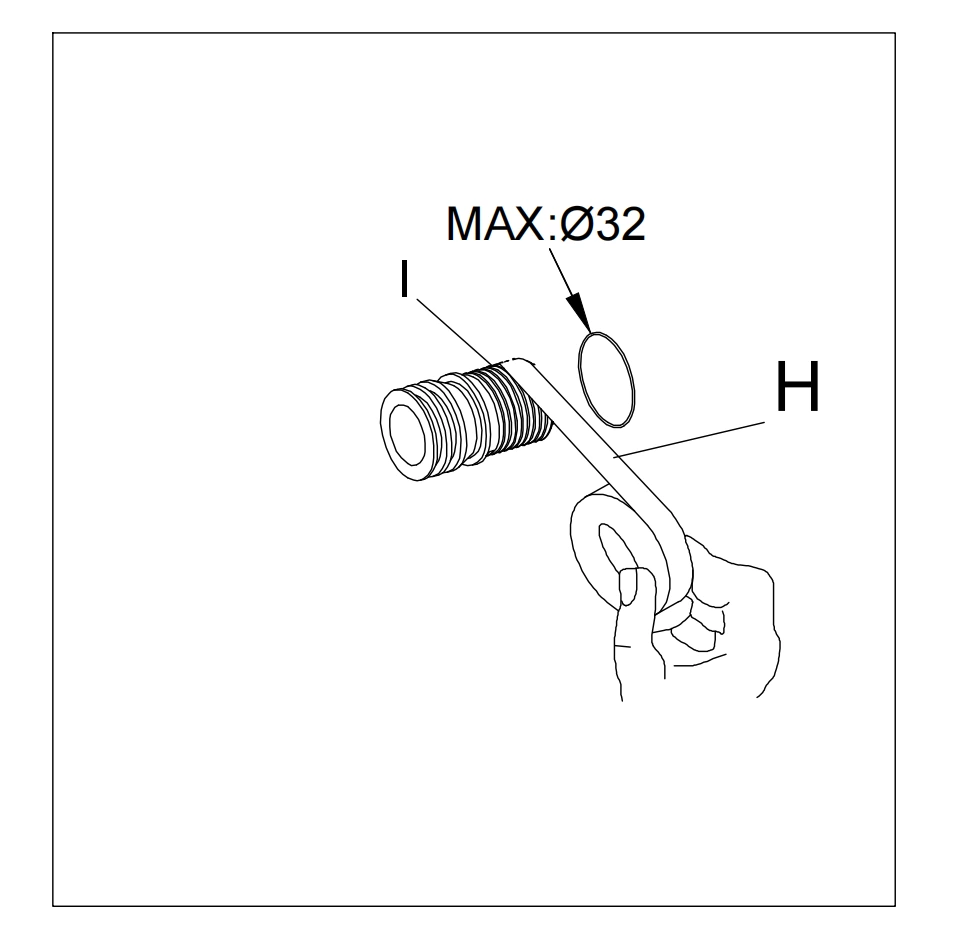

Wrap nylon tape around the screw thread at the end of the thread pipe, and then tighten the thread pipe (I) to the water pipe.

Wall Mounted Basin Faucet Installation Manual

Step 4: Fix the Spout

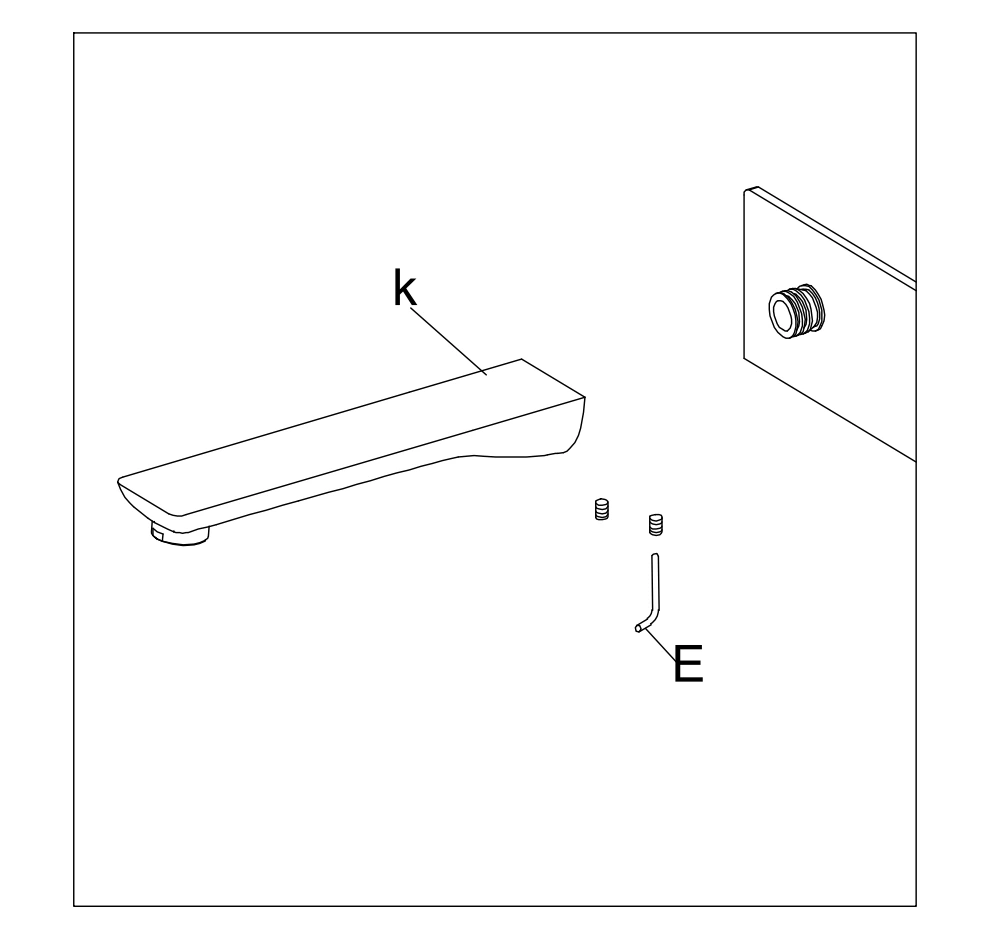

Fix the spout (K) to the position block and the thread pipe, and then use the Allen key (E) to tighten the spout with the thread pipe.

Wall Mounted Basin Faucet Installation Manual

Step 5: Final Check

Check all connections for leaks and ensure everything is securely fastened.

Wall Mounted Basin Faucet Installation Manual

Cleaning and Maintenance

  1. Rinse with clean water and dry with a soft cloth.
  2. Do not use any detergent, acid, polisher, abrasives, or harsh cleaners.
  3. Do not use cloth with a coarse surface.

Technical Specifications

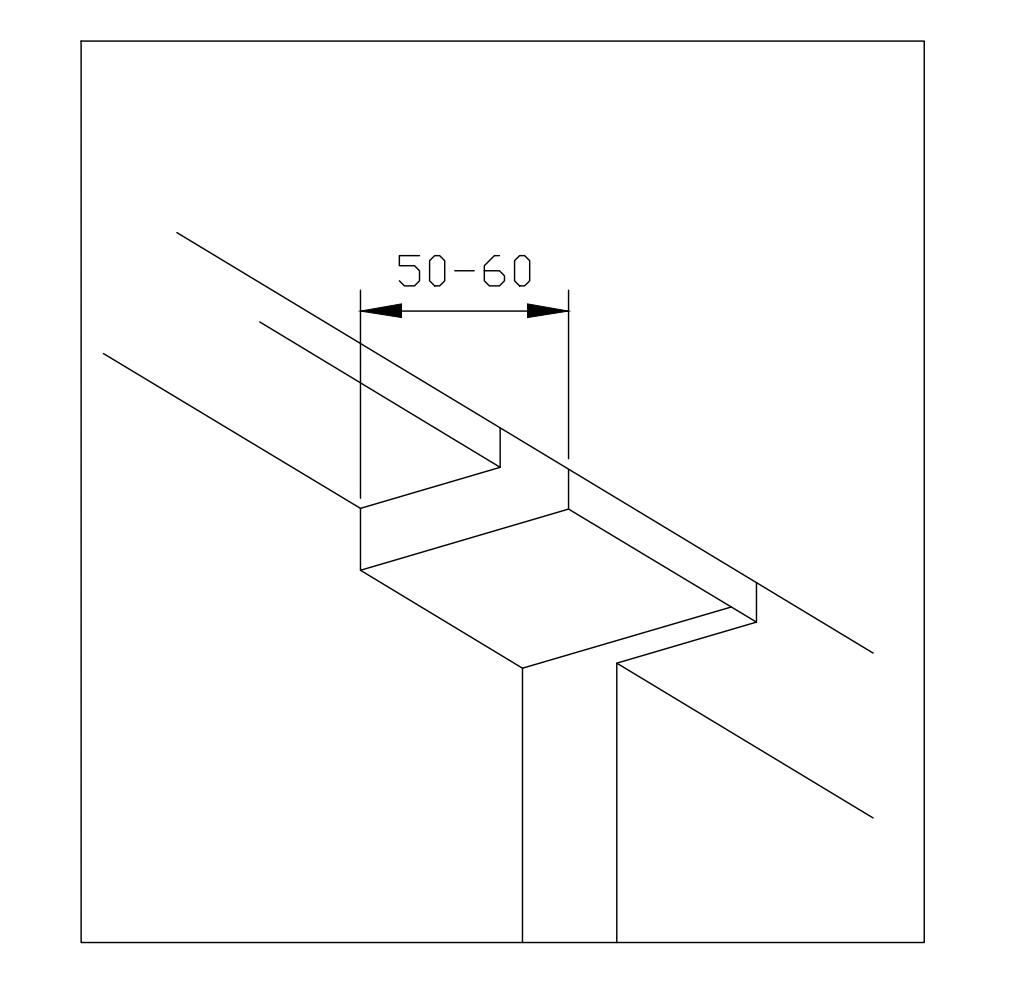

Holes size for the built-in control valve: 175*75*(50-55), the depth between the bottom of the control valve to the tile surface is 50-55mm.
