Basin Faucet Installation Details

Publish Time: Author: Site Editor Visit: 54

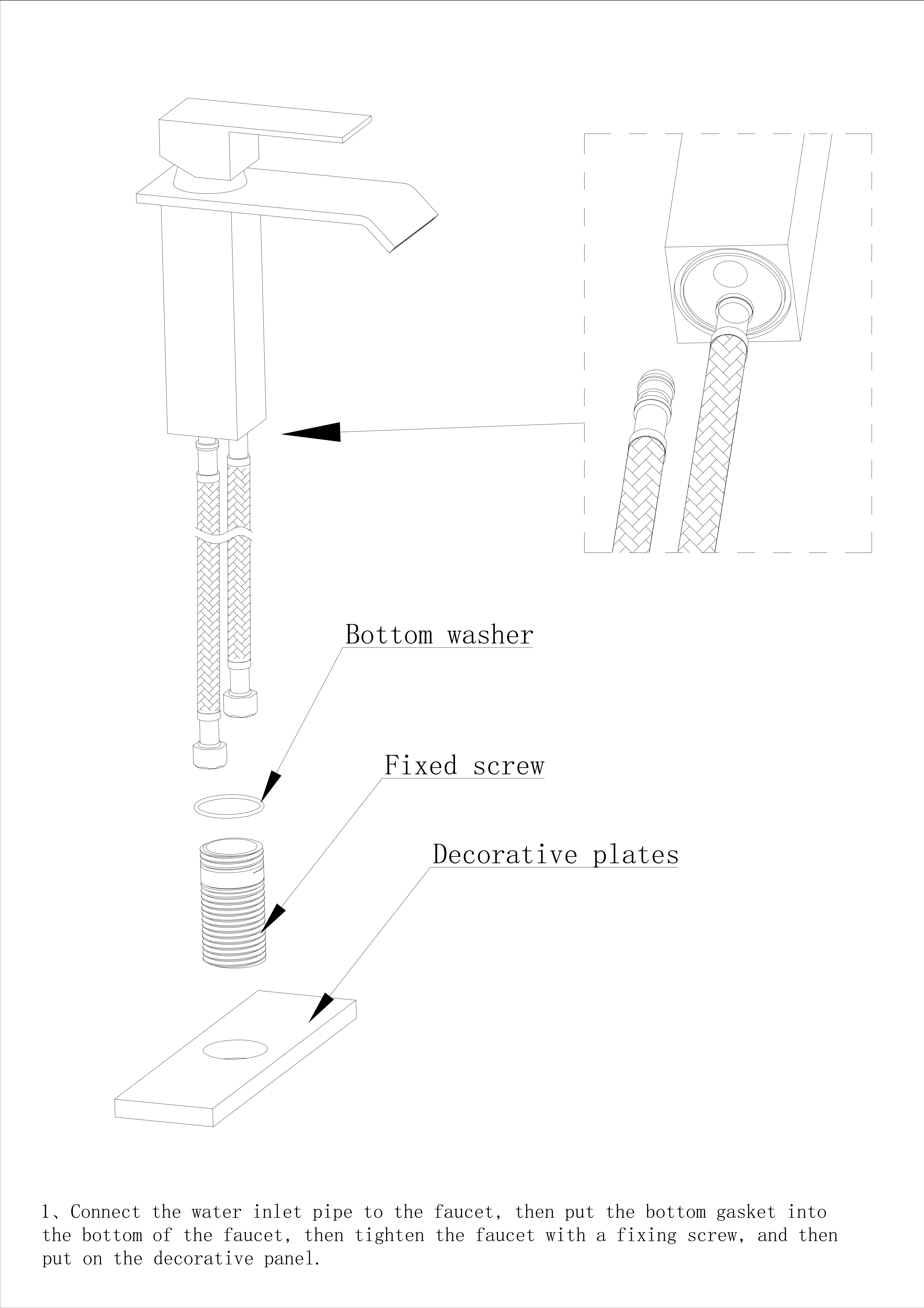

Step 1: Connect the Water Inlet Pipe

Basin Faucet Installation Details

Connect the water inlet pipe to the faucet, then put the bottom gasket into the bottom of the faucet, then tighten the faucet with a fixing screw, and then put on the decorative panel.

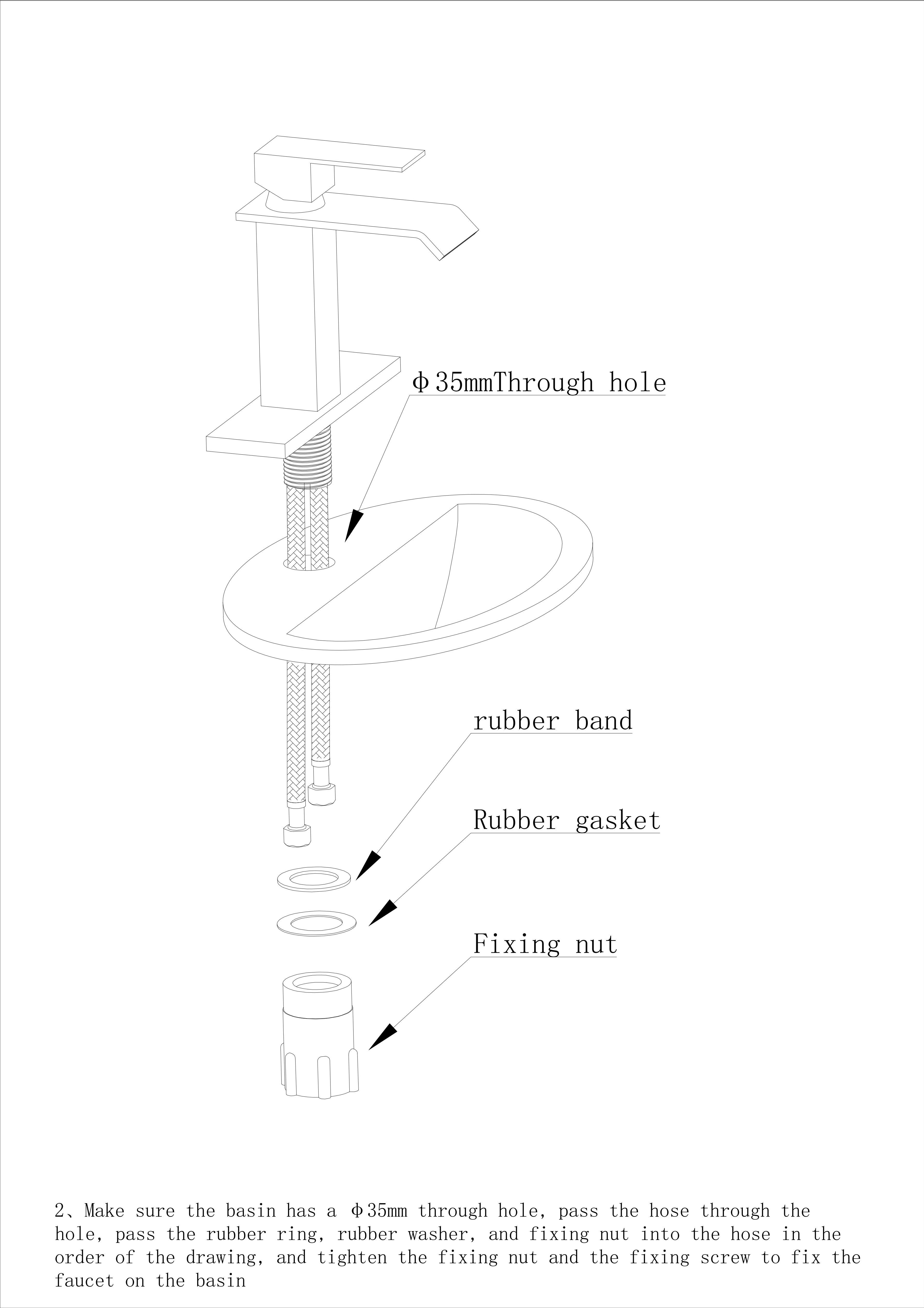

Step 2: Fix the Faucet on the Basin

Basin Faucet Installation Details

Make sure the basin has a φ35mm through hole, pass the hose through the hole, pass the rubber ring, rubber washer, and fixing nut into the hose in the order of the drawing, and tighten the fixing nut and the fixing screw to fix the faucet on the basin.

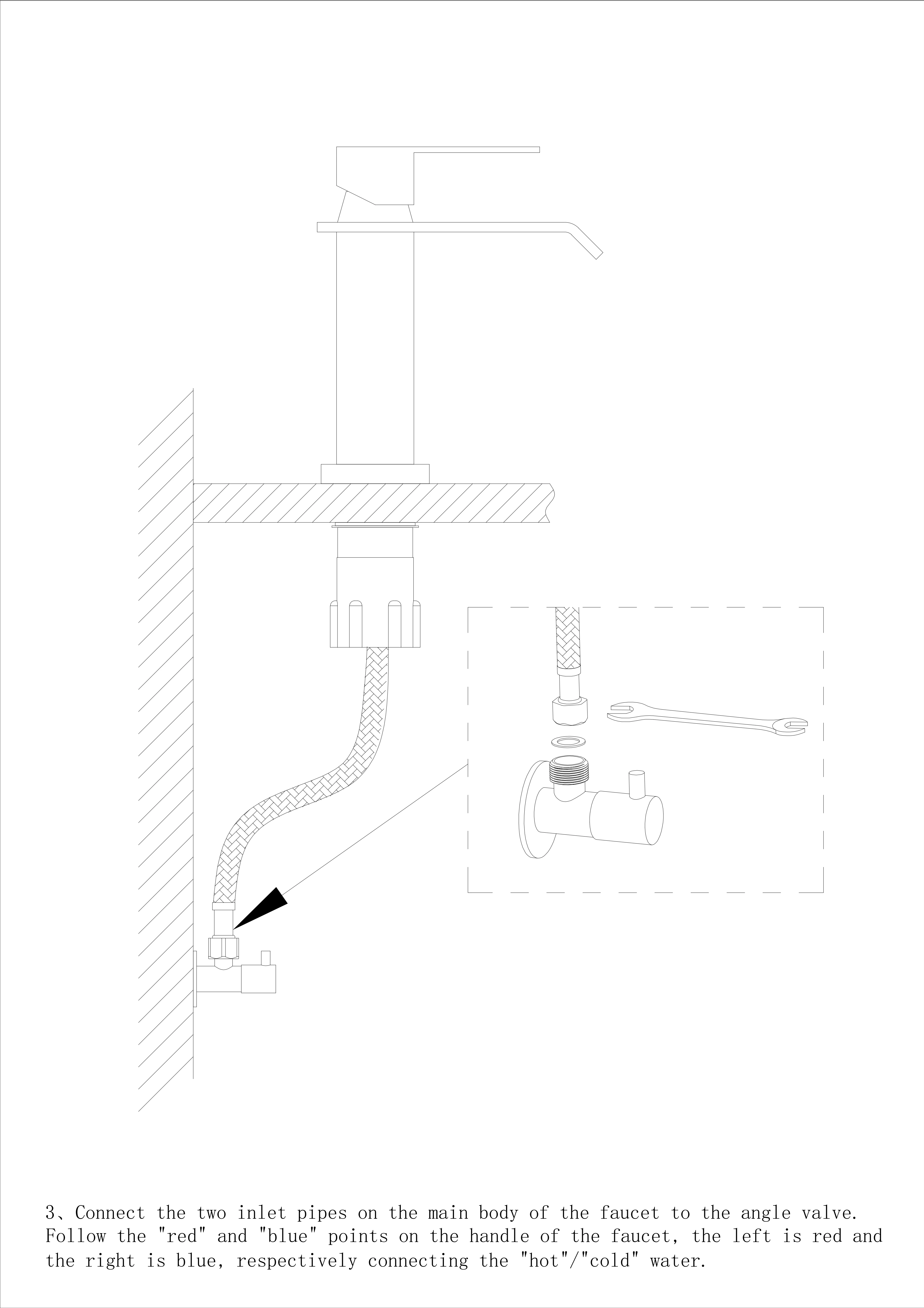

Step 3: Connect the Inlet Pipes to the Angle Valve

Basin Faucet Installation Details

Connect the two inlet pipes on the main body of the faucet to the angle valve. Follow the "red" and "blue" points on the handle of the faucet, the left is red and the right is blue, respectively connecting the "hot"/"cold" water.
